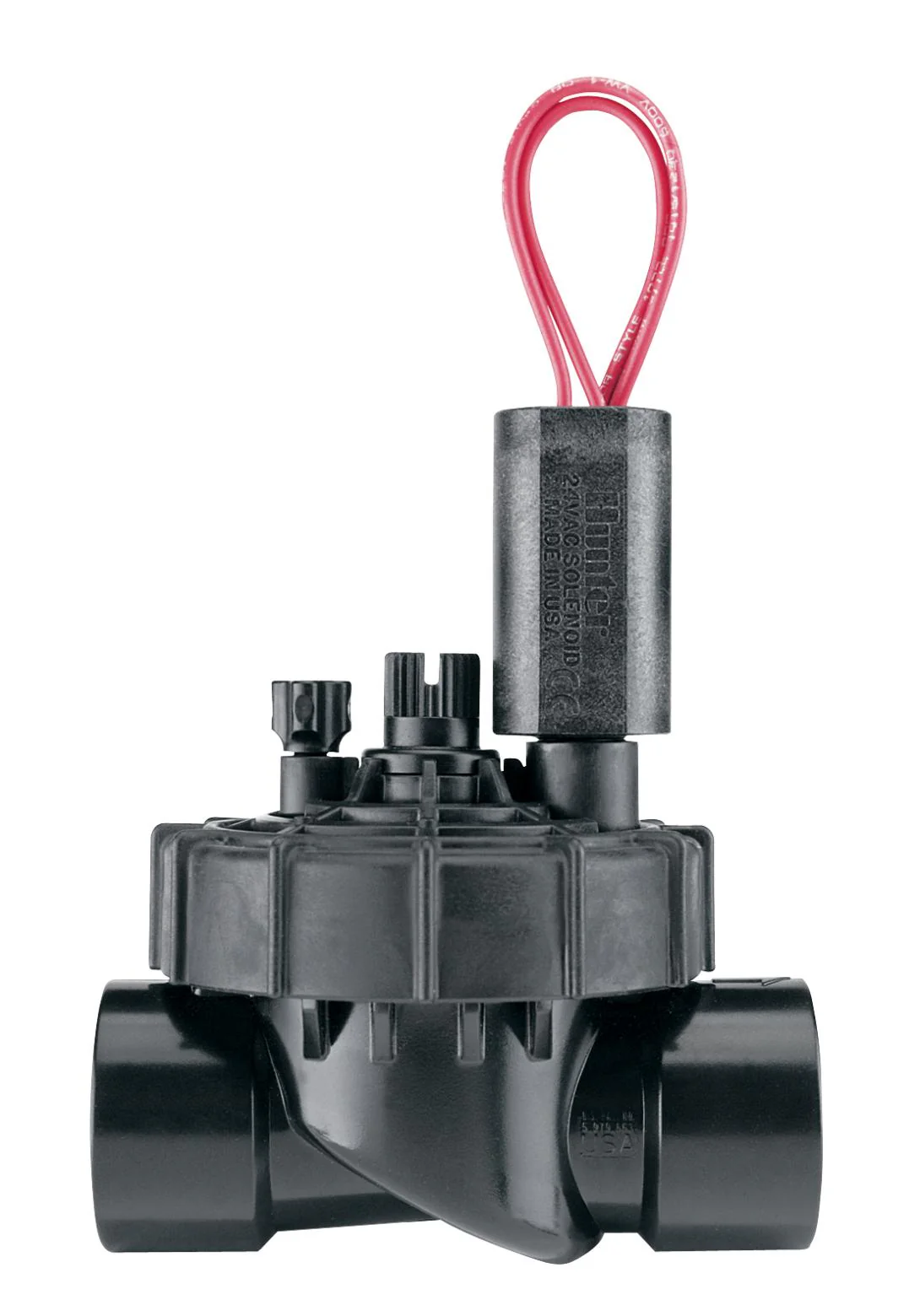

Hunter PGV Solenoid Valve

Highly versatile, robust irrigation valves for simple installation and serviceability. 100% of Hunter valves are water-tested.

Key Benefits

• External/internal manual bleed allows for quick and easy activation at the valve
• Double-beaded diaphragm seal design ensures leak free performance
• Captive bonnet screws eliminate the possibility of lost parts during disassembly
• Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
• Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service
• Flow control maximizes efficiency and prolongs the life of the system

User-Installed Options

• Accu Sync® pressure regulation at the valve
• DC-latching solenoid for battery-powered controllers (P/N 458200)
• Solenoid conduit cover (P/N 464322)

Factory-Installed Options

• LS: Valve without solenoid
• DC: DC-latching solenoid for battery-powered controllers

Operating Specifications

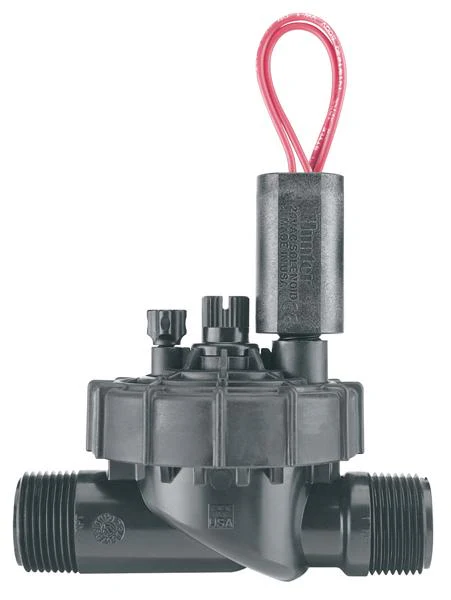

• 1" PGV Operating Specifications
  • Flow: 0.2 to 40 GPM
  • Recommended pressure range: 20 to 150 PSI
  • Temperature rating: 150°F
  • Warranty period: 2 years

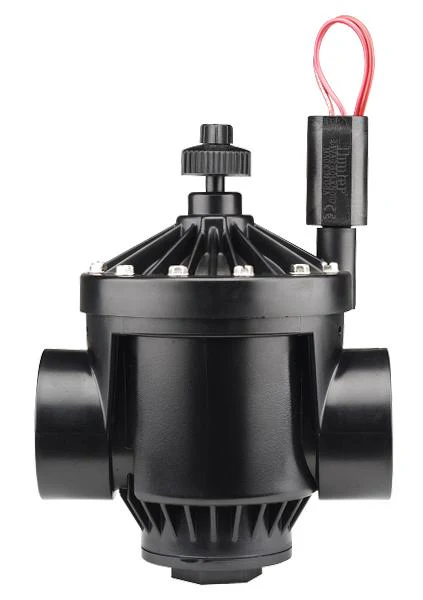

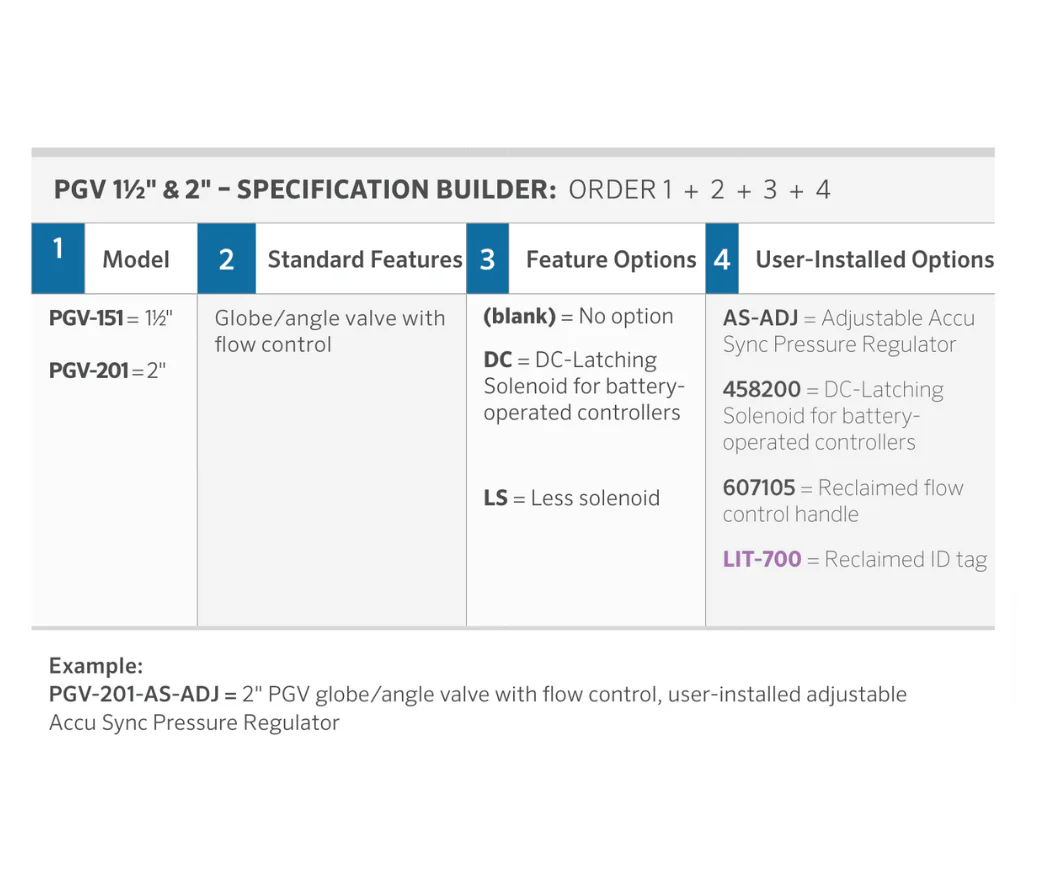

• 1½" and 2" PGV Operating Specifications
  • Flow: PGV-151: 20 to 120 GPM
  • Flow: PGV-201: 20 to 150 GPM
  • Recommended pressure range: 20 to 150 PSI
  • Temperature rating: 150°F
  • Warranty period: 2 years
